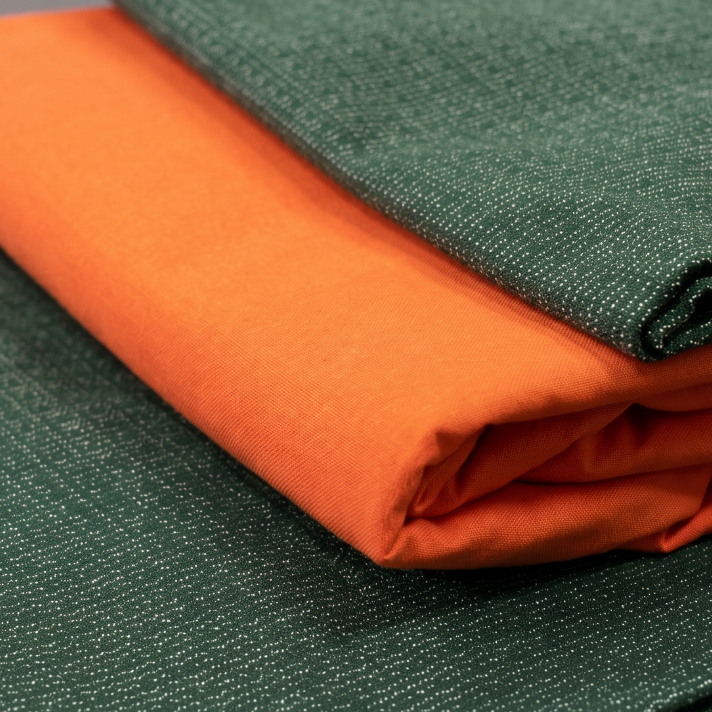

Discover high-performance fire fighting fabrics designed to protect in the most extreme conditions. Available at Mahavir Spinfab, our fabrics ensure superior safety and durability.
Fire fighting fabrics are engineered to provide maximum protection against intense heat and flames, making them essential for firefighters and professionals in high-risk environments. These fabrics are designed to offer thermal insulation, heat resistance, and flame retardancy, ensuring the safety and comfort of the wearer. At Mahavir Spinfab, we produce top-quality fire fighting fabrics that meet rigorous industry standards. Our products are tailored to the specific needs of fire fighting professionals, providing reliable protection in critical situations.
Our fire fighting fabrics are used in industries such as firefighting, emergency response, and industrial safety, where protection from extreme heat and flames is crucial. The fabrics offer numerous benefits, including durability, breathability, and moisture management, ensuring that the wearer remains protected and comfortable during intense activities. At Mahavir Spinfab, we are committed to delivering high-quality, customized fire fighting fabrics that enhance the safety and performance of your team.
| Layer | Outer Layer | Outer Layer | Outer Layer | Moisture Barrier | Thermal Barrier | Thermal Barrier | Inner Lining | |
|---|---|---|---|---|---|---|---|---|
| Product Code | ARAMID 625 | ARABLZ 230 | ARACHV 230 | MB 110 | TB 70 | TBOP 70 | ARAECO 135 | |
| Composition | Fiber (%) |
93% MA, 5% PA & 2% AS |
99% MA, & 1% AS |
99% MA, & 1% AS |
80% MA, & 20% PA with PTFE |
80% MA, & 20% PA |
50% OPAN, & 50% PA |
50% MA, & 50% FR Viscose |
| Weave | Visual | Rip Stop | Rip Stop Twill | Chevron | Non Woven | Non Woven | 3D Non Woven | Plain |
| Weight | GSM | 215 | 225 | 220 | 110 | 70 | 75 | 135 |
| Tensile Strength | Warp (N) | 1600 | 1400 | 1300 | — | — | — | 400 |
| Weft (N) | 900 | 1000 | 1000 | — | — | — | 300 | |
| Tear Strength | Warp (N) | 85 | 110 | 100 | — | — | — | 10 |
| Weft (N) | 80 | 100 | 80 | — | — | — | 10 | |
| Abrasion Resistance | Cycles | <100000 | <100000 | <100000 | — | — | — | <100000 |
| Pilling | Grade | 4 | 4 | 4 | — | — | — | 4 |
| Heat Shrinkage | Warp (%) | <2 | <2 | <2 | <2 | <2 | <2 | <2 |
| Weft (%) | <2 | <2 | <2 | <2 | <2 | <2 | <2 | |
| FR Performance | After Flame Time (S) | 0 | 0 | 0 | — | 0 | 0 | 0 |
| After Glow Time (S) | 0 | 0 | 0 | — | 0 | 0 | 0 | |
| Melting/Dripping | NO | NO | NO | NO | NO | NO | NO | |
| Spray Rating | Grade | 90 | 90 | 90 | 80 | — | — | — |
| Oil Repellency | Grade | 5 | 5 | 5 | — | — | — | — |
| Water Resistance | Level (kPa) | — | — | — | >20 | — | — | — |
| WVR | Level (m²Pa/W) | — | — | — | <30 | — | — | — |
EN 469 Certification Levels
The combined performance of all the layers offered by Mahavir Spinfab achieves Level 2 of EN 469, including fire performance, thermal behavior, moisture transmission, and waterproofness. The following symbols affiliated with the EN 469 certification denote these characteristics:X: Heat Protection
Xf: Against Flame
Xr: Against (Heat) Radiation
Y: Water Density
Z: Breathability
2: Indicator of Performance Levels
At Mahavir Spinfab, we are dedicated to producing top-quality FIREFIGHTING fabrics that meet your industry’s specific needs. Our state-of-the-art manufacturing processes ensure that every fabric is crafted to provide maximum safety, comfort, and durability. Enquire here to learn about FIREFIGHTING fabrics and find the perfect solution for your protective clothing requirements.
