Renowned for its exceptional strength, heat resistance, and inherent flame resistance
Project Information
Discover the benefits of flame-resistant cotton fabrics, ideal for various high-risk industries. Available at Mahavir Spinfab, these fabrics offer top-quality protection tailored to your needs.
Flame retardants play a unique role in fire prevention and safety. They not only prevent fires from starting, but also slow down the spread of the fire and improve opportunity for safe escape. The Nomadic TREATED FR have the quality of inhibiting the fire and reducing the ignitable property of the textile. This range provides to be a comfortable and economical substitute for Inherent FR fabrics along with reducing the flammability of materials by either physically blocking the fire or by initiating a chemical reaction that stops the fire.
Our highly developed expertise in the development of technical textiles help us control all the physical and chemical aspects of the fabric from fiber to the finished stage. The FR treatment in this range is done either with high quality Flame Retardant chemicals.
Mahavir SpinFab Treated FR is most suitable for persons who work in high risk environments that involve the hazards of welding sparks/spatters, molten metals, electric arc, flash fire, combustible dust explosion or any workplace involving energised electrical equipment.

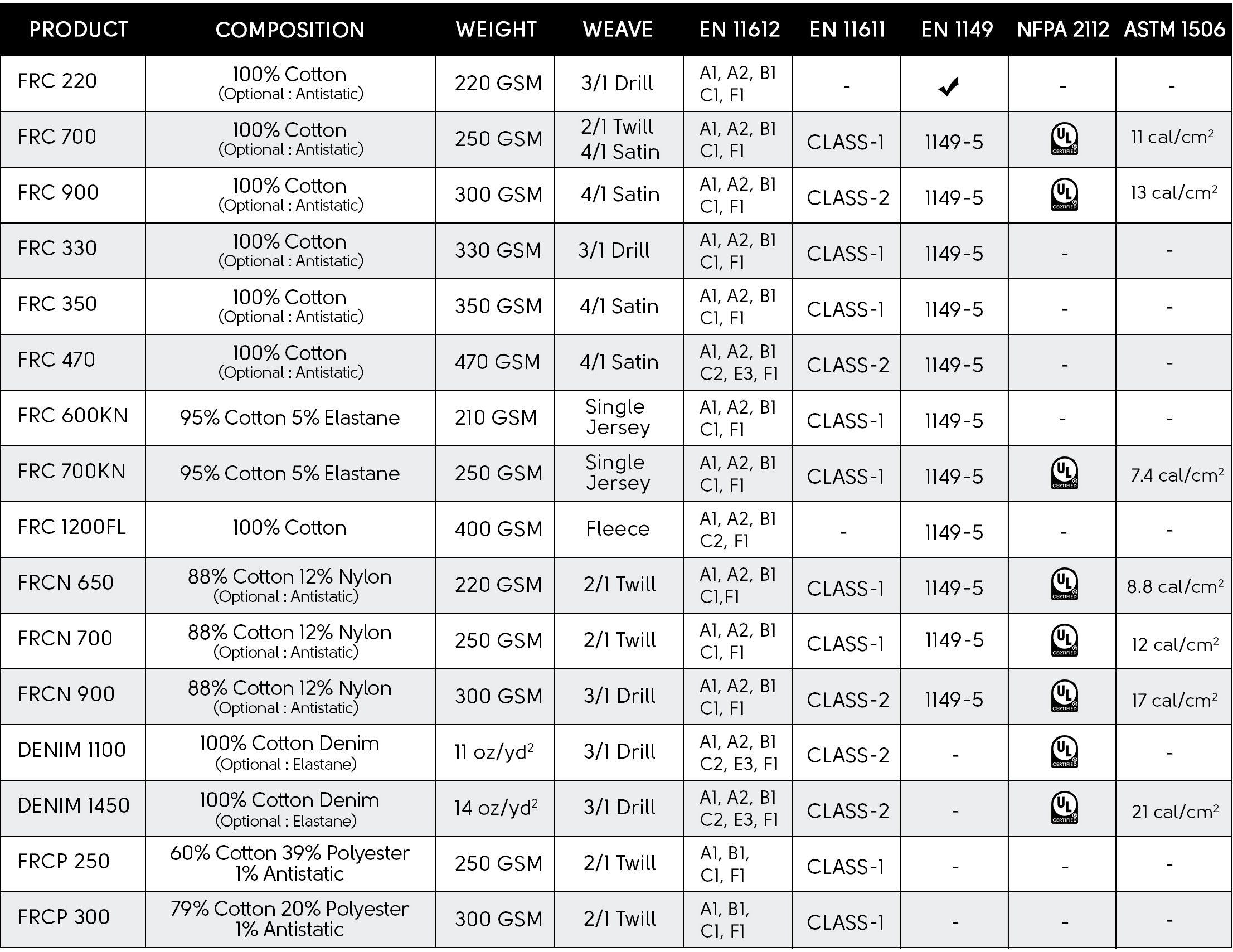

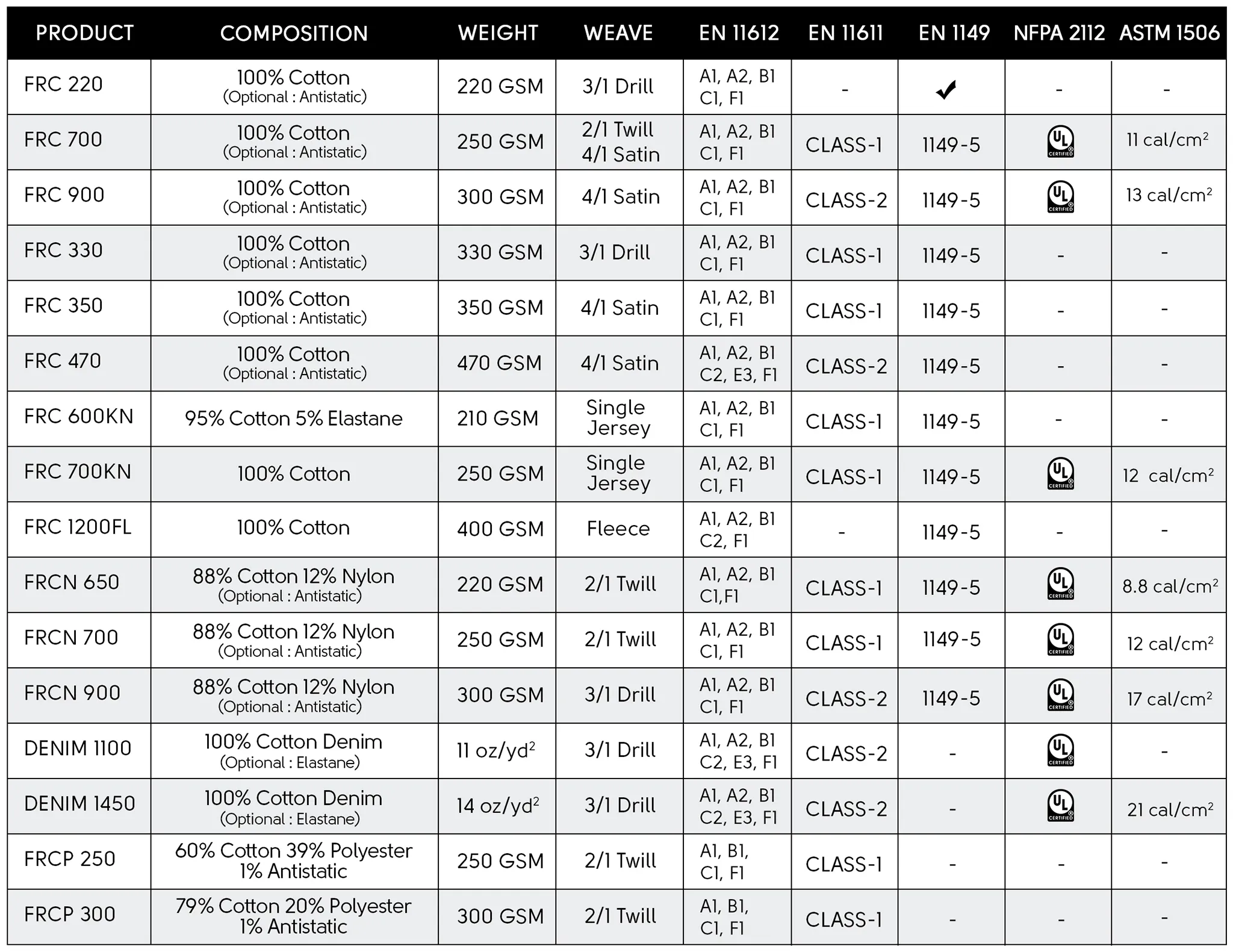

| PRODUCT | COMPOSITION | WEIGHT | WEAVE | EN 11612 | EN 11611 | EN 1149 | NFPA 2112 | ASTM 1506 |
|---|---|---|---|---|---|---|---|---|
| FRC 220 |
100% Cotton (Optional : Antistatic) | 220 GSM | 3/1 Drill |
A1, A2, B1, C1, F1 | — | ✓ | — | — |
| FRC 700 |
100% Cotton (Optional : Antistatic) | 250 GSM |
2/1 Twill 4/1 Satin |
A1, A2, B1, C1, F1 | CLASS-1 | 1149-5 |
 | 11 cal/cm² |
| FRC 900 |
100% Cotton (Optional : Antistatic) | 300 GSM | 4/1 Satin |
A1, A2, B1, C1, F1 | CLASS-1 | 1149-5 |
| 13 cal/cm² |
| FRC 330 |
100% Cotton (Optional : Antistatic) | 330 GSM | 3/1 Drill |
A1, A2, B1, C1, F1 | CLASS-1 | 1149-5 | — | — |
| FRC 350 |
100% Cotton (Optional : Antistatic) | 350 GSM | 4/1 Satin |
A1, A2, B1, C1, F1 | CLASS-1 | 1149-5 | — | — |
| FRC 470 |
100% Cotton (Optional : Antistatic) | 470 GSM | 4/1 Satin |
A1, A2, B1, C2, E3, F1 | CLASS-2 | 1149-5 | — | — |
| FRC 600KN | 95% Cotton 5% Elastane | 210 GSM | Single Jersey |
A1, A2, B1, C1, F1 | CLASS-1 | 1149-5 | — | — |
| FRC 700KN | 100% Cotton | 250 GSM | Single Jersey |
A1, A2, B1, C1, F1 | CLASS-1 | 1149-5 |
| 12 cal/cm² |
| FRC 1200FL | 100% Cotton | 400 GSM | Fleece |
A1, A2, B1, C2, F1 | — | 1149-5 | — | — |
| FRCN 650 |
88% Cotton 12% Nylon (Optional : Antistatic) | 220 GSM | 2/1 Twill |
A1, A2, B1, C1, F1 | CLASS-1 | 1149-5 |
| 8.8 cal/cm² |
| FRCN 700 |
88% Cotton 12% Nylon (Optional : Antistatic) | 250 GSM | 2/1 Twill |
A1, A2, B1, C1, F1 | CLASS-1 | 1149-5 |
| 12 cal/cm² |
| FRCN 900 |
88% Cotton 12% Nylon (Optional : Antistatic) | 300 GSM | 3/1 Drill |
A1, A2, B1, C1, F1 | CLASS-2 | 1149-5 |
| 17 cal/cm² |
| DENIM 1100 |
100% Cotton Denim (Optional : Elastane) | 11 oz/yd² | 3/1 Drill |
A1, A2, B1, C2, E3, F1 | CLASS-2 | — |
| — |
| DENIM 1450 |
100% Cotton Denim (Optional : Elastane) | 14 oz/yd² | 3/1 Drill |
A1, A2, B1, C2, E3, F1 | CLASS-2 | — |
| 21 cal/cm² |
| FRCP 250 |
60% Cotton 39% Polyester 1% Antistatic | 250 GSM | 2/1 Twill |
A1, B1, C1, F1 | CLASS-1 | — | — | — |
| FRCP 300 |
79% Cotton 20% Polyester 1% Antistatic | 300 GSM | 2/1 Twill |
A1, B1, C1, F1 | CLASS-1 | — | — | — |
Assessing Arc Thermal Performance Value (ATPV)
This graph illustrates the Arc Thermal Performance Value (ATPV) of our flame-resistant cotton fabrics. The ATPV rating indicates the level of protection against electric arc hazards, ensuring that our fabrics provide reliable safety in environments where arc flash risks are present. Higher ATPV ratings reflect better protective capabilities, giving you confidence in the performance of our treated FR cotton.
Evaluating Burn Injury Protection
The burn injury graph showcases the effectiveness of our flame-resistant cotton fabrics in minimizing burn injuries. This graph highlights the fabric’s ability to reduce the severity of burns, offering critical protection for workers exposed to fire hazards. Our treated FR cotton fabrics are designed to provide superior burn injury prevention, enhancing overall workplace safety.
At Mahavir Spinfab, we are dedicated to producing top-quality TREATED FR fabrics that meet your industry’s specific needs. Our state-of-the-art manufacturing processes ensure that every fabric is crafted to provide maximum safety, comfort, and durability. Enquire here to learn about TREATED FR fabrics and find the perfect solution for your protective clothing requirements
